Smart Flow Cloud Monitoring System

Smart Flow Cloud Monitoring System can centralized monitoring water/wastewater treatment equipment and systems anytime, anywhere for anyone. Operators will be notified the issues of equipment and systems, which helps them to implement maintenance in time. Additionally, it can also provide visualized data report to facilitate managers to calculate the operation costs, so as to support Delicacy Management and reduce costs. Meanwhile, it reduces the errors during information transmission, which improves the efficiency.

① Can be used on a wide variety of water/wastewater treatment equipment and systems.

② Displaying real-time data of equipment operation, generating visualized data report, continuously monitoring through phone or computer anywhere, anytime.

③ Remote warning and maintenance notification through SMS or email to fix the issues timely.

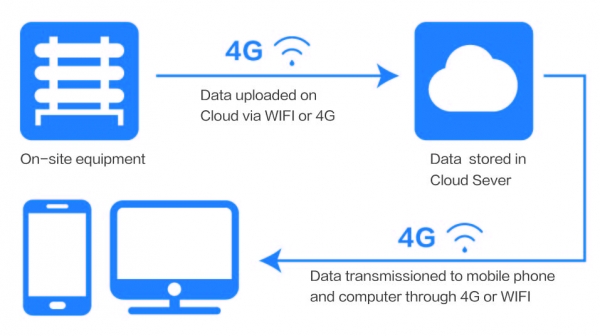

④ 4G or WI-FI Connection to the Cloud, transmission data stably.

⑤ Multi-level authority and password to protect data security.

⑥ Acting as a co-operation platform for global projects.

⑦ Realizing the centralized management of distributed equipment to reduce the cost of labor.

Memory	128MB Flash 128 MB DDR３
Vdc	DC２４V，available range：ＤＣ９－２８Ｖ
Network Method	Cable／GPRS／３G／４Ｇ	Cable／WIFI
ＵＳＢ端口	One USB Device２.０ Type B port，one USB Host２.０ Type A port
Functions	Real-time data monitoring, historical data record，ordinary transmission, VPN transmission, edge computing, API interface, remote control and upgrade firmware, import and export configuration files
Data Monitoring	５００ points	３００ points
Alarm entries *	２００ points	１００ points
Historical entries **	１００ points	３０ points
Storage time of historical data	１８０ days	９０ days

*Points that can be set to alarm
**Points that can be stored in history
