MKsECO Water Treatment System

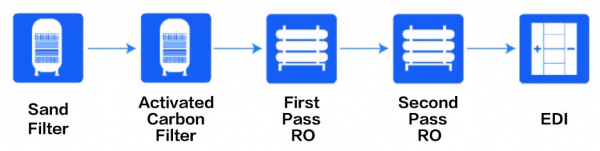

MKsECO is a pure water treatment system that made by Sand Filter, Activated Carbon Filter, Two Pass RO and EDI. The quality of purified water meets the requirements of “ASTM D5127-13 pure water for electronic and semiconductor industry in the United States” and “GB/T 11446.1-1997 electronic grade water in China”. MKsECO will be pre-engineered, pre-fabricated and pre-tested in factory, which simplifies and shortens the installation on-site.
MKsECO adopts PLC Control System, it enables the system to operate automatically, lower the manpower. For better operation, “Smart Flow Cloud Monitoring System” can be chosen to help operators acknowledge the system status anytime and anywhere, which simplifies the operation and maintenance.
① Pre-fabricated, pre-engineered and pre-tested in factory
② Skid-mounted type, can be put into a container
③ Quick installation on-site
④ PLC control, automatic operation, low maintenance
⑤‘Smart Flow Cloud Monitoring System’ is optional
⑥ Optional Accessories：SUS316 Pump, Stainless Membrane Housing, CIP System, Heat Exchanger, Inflow Electronic Flowmeter, Thermometer
| Model | Capacity（m3/hr） | Area（㎡） | Power Requirement | Materials |
| MKsEco-1 | 1 | 4 | 220v/380v 50Hz | Quartz Sand and Activated Carbon Filter：FRP； RO Membrane Housing：FRP，crushing strength 300PSI； Frame：SUS304； 5um Filter：SUS304； Pump Water Attach Part：SUS304； High Pressure Pump Water Attach Part：SUS316； EDI Feed Pump：SUS316 |
| MKsEco-3 | 3 | 5 | ||
| MKsEco-5 | 5 | 8 | ||
| MKsEco-10 | 10 | 21 | ||
| MKsEco-15 | 15 | 25 |
